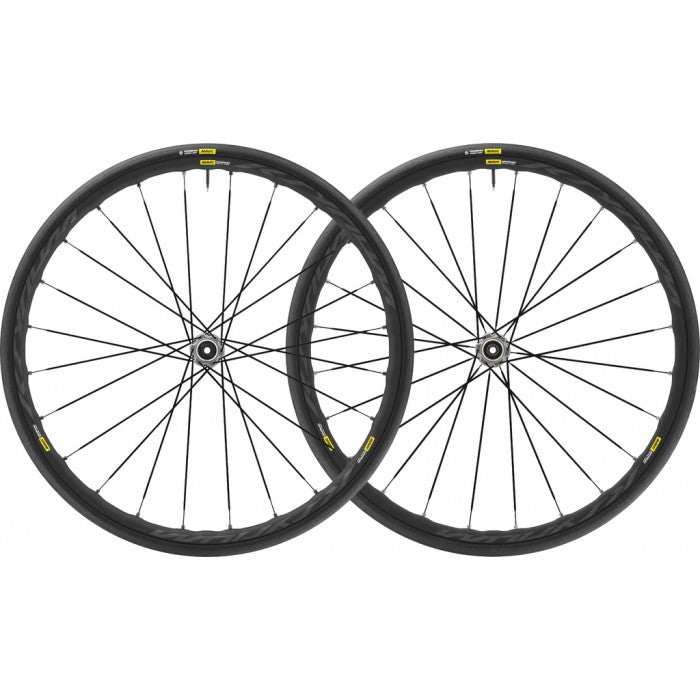

Mavic Ksyrium-Elite UST Disc CL (pr)

ompatibility

• Front axle: 12x100 thru axle, easily convertible to quick release with included adapters. Not compatible with 15mm through axles.
• Front axle: 12mm thru axle, easily convertible to quick release with included adapters. Convertible to 15mm with complete axle replacement
• Rear axle: 12mm thru axle, convertible to Quick Release with included adapters
• Freewheel: Shimano/Sram, convertible to Campagnolo and XD-R with optional driver bodies

Compatible Adapters and freewheel bodies

• ID360 Shimano / Sram freewheel body (V3430101 - Delivered on the wheel)
• ID360 XD freewheel body (V2580101)
• ID360 Campagnolo freewheel body (V3440101)
• ID360 Shimano / Sram Light freewheel body (V3850101)
• 12x135 rear axle adapters (V2510901)
• 12 to 9mm rear adapter for quick release (V2510801 - Delivered with the wheel)
• 12x142 rear axle adapters (V2510701 - Delivered with the wheel)
• 15mm axle (Center lock: V22 524 01, 6 Bolts: V22 523 01) + 15mm fork rest (B4104401)
• 12 to 9mm front adapter for quick release (V2680301 - Delivered with the wheel)

Weight

• Pair without tyre: 1670 grams
• Front without tyre: 770 grams
• Rear without tyre: 900 grams

Hubs

• Front bearings : adjustable sealed cartridge bearings (QRM+), Rear bearings : auto adjust sealed cartridge bearings (QRM Auto)
• Front: Quick release, 12x100 and 15x100 through axle compatible
• Rear: Quick Release, 12x142 and 12x135 compatible
• Freewheel: Instant Drive 360
• Front and rear bodies: aluminum
• Axle material: aluminum

Intended Use

• For a longer longevity of the wheel, Mavic recommends that the total weight supported by the wheels don't exceed 120kg, bike included
• ASTM CATEGORY 2 : road and offroad with jumps less than 15cm
• Max. Pressure tubeless: 25mm 6 bars - 87 PSI, 28mm 5 bars - 70 PSI. Max pressure tubetype: 25mm 7 bars - 102 PSI, 28mm 6 bars - 87 PSI
• Recommended tyre sizes: 25 to 32 mm

Rims

• Height: 22 mm
• ETRTO size: 622x19TC Road
• Weight reduction: ISM 4D
• Internal width: 19 mm
• Disc brake specific profile
• Valve hole diameter: 6.5 mm
• Tyre: UST Tubeless and tubetype
• Drilling: Fore
• Joint: SUP
• Material: Maxtal

Spokes

• Material: steel
• Shape: straight pull, flat
• Lacing: front crossed 2, rear Isopulse
• Nipples: Fore integrated aluminum
• Count: 24 front and rear

Tyre

• Front and Rear Tread: 11 Storm single compound
• Yksion Pro UST
• UST Tubeless Ready
• Dimension: 25-622 (700x25c)
• Breaker: Polyamide, from bead to bead
• Casing: 127 TPI

Versions

• Disc standard: Center Lock(R) only
• Color: Black only
