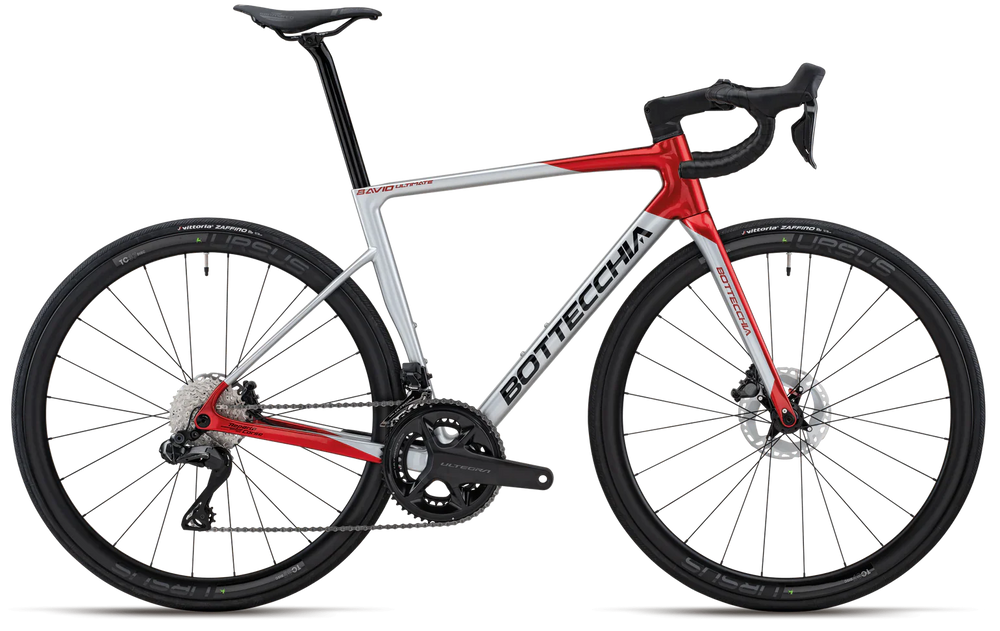

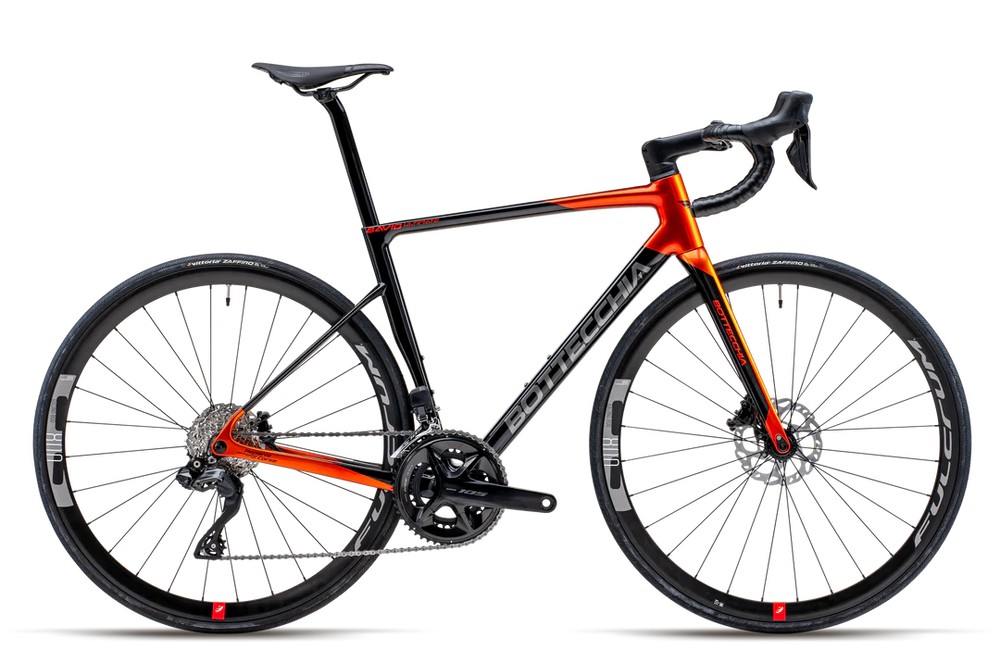

It was the early 2000s when the "8avio" series was first born: racing bikes for pure road riders with exceptional performance. From this twenty-year tradition comes the new 8AVIO ULTIMATE, the roadbike that condenses the performance and rideability characteristics of the award-winning EMME4 SLI Italian Champion bike and an absolutely competitive price.
FRAME
UD carbon monocoque, double mold, internal cable routing, suitable for electronic group set disk brake thrue axle, carbon seat post, derailleur hanger UDH, HPG geometry.
BB
PRESSFIT 86mm.
HEADTUBE
Integrated 1” 1/2 up and 1” 1/2 down
FORK
Monocoque carbon UD tapered steerer 1” 1/2, 390grs of weight.
WEIGHT
Size M 985 gr
Gear |
Shimano Ultegra Di2 24s DISK |
Rear Derailleur |
Shimano Ultegra Di2 24s |
Shifter |
Shimano Ultegra Di2 24s DISK |
Chainwheel |
Shimano Ultegra 52/36 |
Wheels |
Ursus carbon Disk |
Cassette |
Shimano 11/34 12s |
Brakes |
Shimano 8170 Di2 DISK 140/160 |
Tires | Vittoria Zaffiro fold 700x25 |
Handlebar |
Bottecchia ONE Integrated Carbon |
Stem |
Bottecchia ONE Integrated Carbon |
Seatpost |
Ultimate Carbon aero |
Saddle | SAN MARCO Short fit wide open |

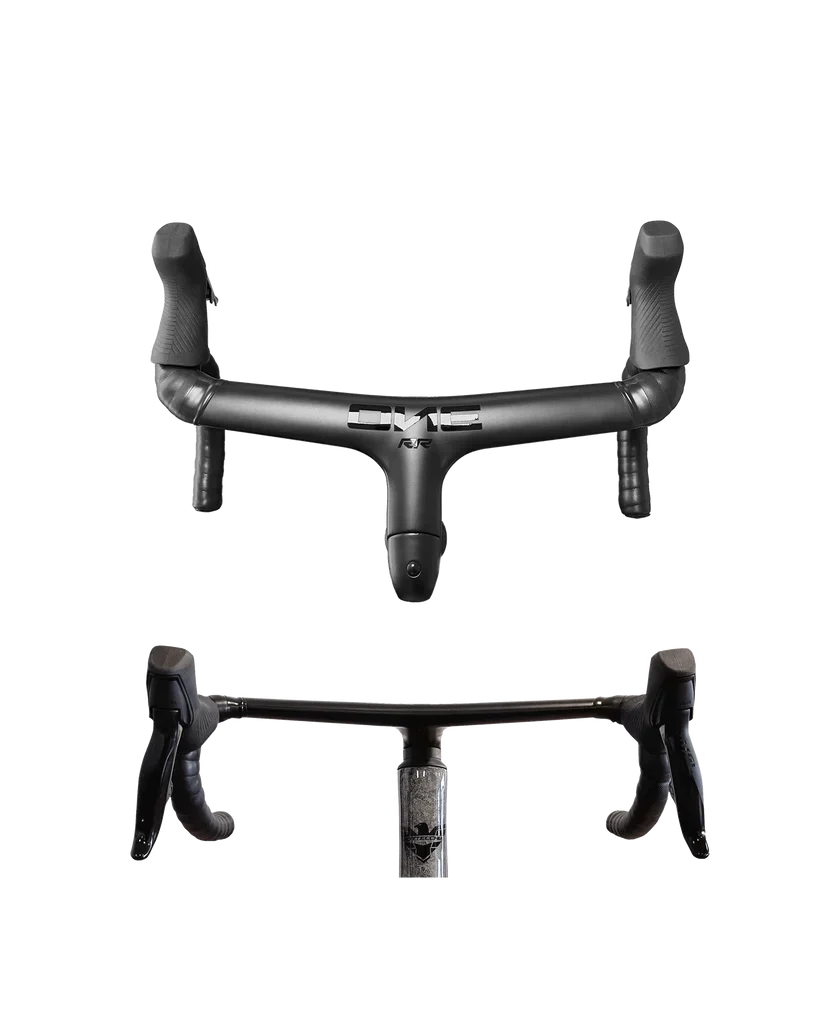

The new full carbon integrated OИE RR handlebar is designed for the Pro Road Racing world.
Stem and handlebar are integrated into a single structure that ensures maximum cable integration, with a clear advantage in terms of stiffness, comfort and record aerodynamics.
Weight 430 grams.
AVAILABLES SIZES: 420 x 90/100 - 440 x 90/100/110/120 - 460 x 110/120
Aso available in the following Setups
59RA 8AVIO ULTIMATE Sram Rival eTap AXS 24s Disk
59TD 8AVIO ULTIMATE Shimano Dura Ace Di2 24s Disk
59RD 8AVIO ULTIMATE Shimano Ultegra Di2 24s Disk
59DD 8AVIO ULTIMATE Shimano 105 Di2 24s Disk
Sizes
46 - 49 - 52 -54- 56 - 58
SIZE | A | B1 | C | E | F | S | STACK | REACH |
46 | 435 |
501 |
75.5° | 70.5° | 406 |
95 |
502 |
371 |
49 | 445 |
515 |
75° | 71st | 406 |
105 |
513 |
378 |
52 | 465 |
531 |
74° | 71.5° | 406 |
115 |
524 |
380 |
54 | 485 |
543 | 74° | 72° | 406 |
135 |
545 |
386 |
56 | 505 |
562 |
73.5° | 72.5° | 406 |
155 |
565 |
395 |
58 | 525 | 577 | 73.5 | 72.5 | 406 | 175 | 585 | 404 |
Unidirectional monocoque carbon frame, produced with double mold DMMT (Double Mold Monocoque Technology) technology which makes the frame 20% more resistant, without increasing its weight. Thanks to the parallel arrangement of the carbon fibers it is possible to orient the direction of resistance of the fiber depending on the stress to which the various parts are subjected, without increasing the quantity of carbon required. Aerodynamic efficiency is guaranteed by the fully integrated cable routing thanks to IRC (Internal Routing Cables) technology and by the carbon seatpost with integrated aero-derived collar. To complete the set-up, the new integrated OИE RR full carbon handlebar, perfected for internal cable mounting, and for better rideability.
Designed for long distances, it guarantees easy and safe handling. Perfect for climbs thanks to its reduced weight and its greater rigidity, it is stable and fast even downhill, where it makes the difference thanks to its aerodynamics with internal wiring.
8avio Ultimate is the quintessence of road bikes: latest generation technology, refined design, high level performance but an extremely competitive price.
